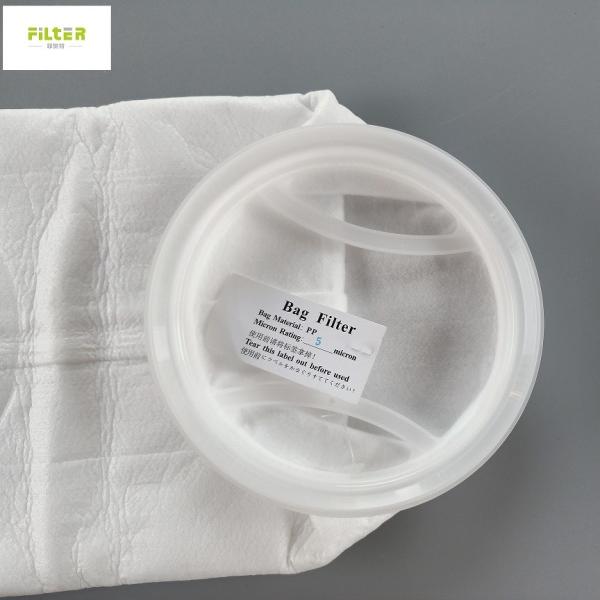

Liquid Filtration 5 50 100 200 300 Micron Nylon and Polypropylene Material Filter Bag:
1. The filter mesh widely used in all kinds of filtration and separation, such as:
1. air filter mesh in air conditioner filter.
2. liquid filter mesh for milk, juice, cheese, soya bean ect.
3. flour, solid mesh for milling.
4. We can deep produce it into filter disc and filter strainers.
5. hydrocarbon extraction.
2. Production Description:
We produce Polyester,Nylon,Polypropylene liquid filter bag.
We supply different micron liquid filter bag and custom size for customer.
We can custom different size Plastic ring and Steel ring according to your requirements.
We can custom different bottom such as U-type bottom,V-type bottom
according to your requirements.
3. The Chemical Resistance of Liquid Filter Bag:
| Product Name | Liquid Filter Bags |
| Material Available | Nylon (NMO) | Polyester (PE) | Polypropylene (PP) |
| Maximum Operating Temperature | 275-300° F (135-149° C) | 275-325° F (135-162° C) | 200-220° F (93-104° C) |
| Micron Rating (um) | 5,10,25, 50, 100, 150, 200, 300, 400, 500, 600, or 5-2000um | 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 | 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300 |
| Size | 1 #: 7" x 16" (17.78 cm x 40.64 cm) 2 #: 7" x 32" (17.78 cm x 81.28 cm) 3 #: 4" x 8.25" (10.16 cm x 20.96 cm) 4 #: 4" x 14" (10.16 cm x 35.56 cm) 5 #: 6 " x 22" (15.24 cm x 55.88 cm) Customized size |
| Filter Bag Area(m²) / Filter Bag Volume (Liter) | 1#: 0.19 m² / 7.9 Liter 2#: 0.41 m² / 17.3 Liter 3#: 0.05 m² / 1.4 Liter 4#: 0.09 m² / 2.5 Liter 5#: 0.22 m² / 8.1 Liter |
| Collar Ring | Polypropylene ring/Polyester ring/Galvanized steel ring/ Stainless steel ring/Rope |
| Remarks | OEM: support Customized item: support |
| The Chemical Resistance Of Liquid Filter Bag |
| Fiber Material | Polyester (PE) | Nylon (NMO) | Polypropylene (PP) |
| Abrasion Resistance | Very Good | Excellent | Very Good |
| Weakly Acid | Very Good | General | Excellent |
| Strongly Acid | Good | Poor | Excellent |
| Weakly Alkali | Good | Excellent | Excellent |
| Strongly Alkali | Poor | Excellent | Excellent |
| Solvent | Good | Good | General |
4. Characteristic nylon mesh bag/drawstring mesh bag:
* High Elongation.
* Excellent alkaline resistance.
* It has a working temperature of up to 120 degrees ºC.
* Smooth filament, immersion resistance,no material drop off.
* Stable chemical and physical properties
Producing Process(Air Filter Bag and Liquid Filter Bag):
Applications:

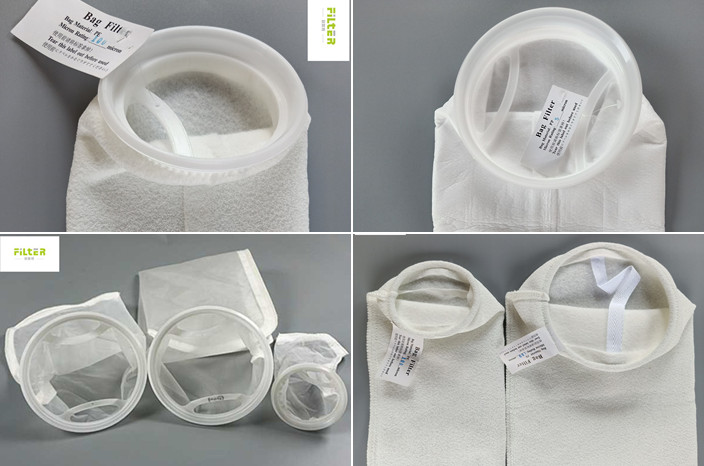

More Production:
Packaging & Delivery:
| Supply Ability | 10000 Pieces per day filter bag |
| Packaging Details | Export carton box |
| Lead Time | 3-15 days after your deposit |
| Port | Ningbo/Shanghai |
The common shipping:
1. For small quantity, shipped by courier.
2. For large quantity, shipped by air or by sea.
3. Tracking number will be emailed to you after order has been shipped.
4. If you have forwarder in China, then we can send to your forwarder for free.
Foreign Trade Team:
Exhibization:
Certificate:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory with 28 years' manufacturing and sales experience.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock, or it is 7-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the freight cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Shipping Details:
| SHIPPING (Normally arrive port time in working days) |
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR | SHIP BY EMS |
| DHL/FEDEX/UPS/TNT |
| North America | 3~7 days | 15~24 days | 5~7 days | 10~12 days |
| South America | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days | 10~12 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days | 10~12 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days | 10~12 days |
| Australia | 3~7 days | 10~15 days | 5~7 days | 10~12 days |
